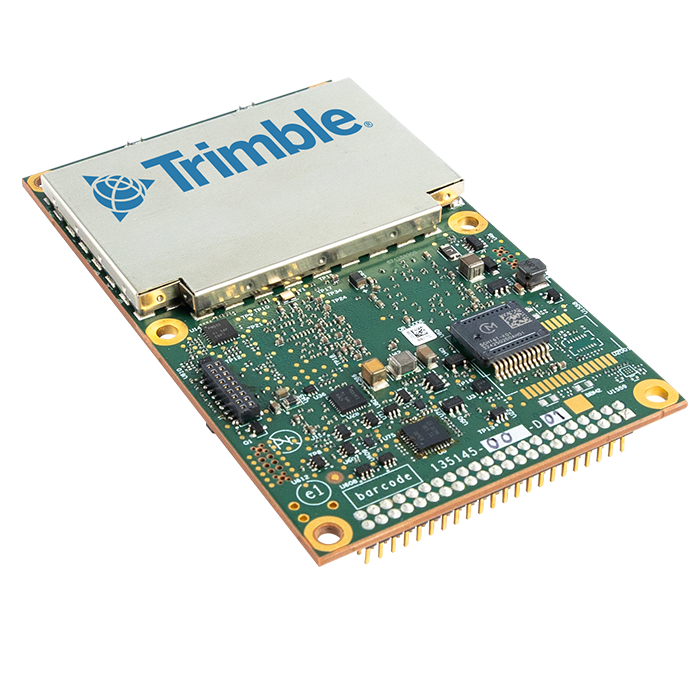

Trimble BD1092i
The flagship BD1092i receiver module is a dual-antenna, quad-band GNSS-INS receiver designed for embedded applications. Integrating advanced MEMS inertial sensors and the Trimble ProPoint® engine, it delivers uninterrupted centimeter-level positioning. Powered by the new Maxwell™ 8 technology for uncompromised performance, it offers OEMs unprecedented resilience via built-in JammerGuard™, IonoGuard™, and RTX-NMA spoofing protection in a compact footprint.
Product Summary
Trimble BD1092i
The BD1092i is a dual-antenna, quad-band GNSS-INS receiver module powered by the new Maxwell 8 technology. It delivers centimeter-level positioning, orientation, and advanced anti-jamming and spoofing protection in a compact board form.
Product
Specifications
Onboard high-accuracy MEMS inertial sensors (handling up to ±8 g acceleration and ±300 deg/sec angular rate) tightly coupled with GNSS for robust positioning and orientation.
Features Trimble Maxwell 8 technology with best-in-class GNSS ASICs for superior signal tracking and anti-jamming.
Advanced JammerGuard and anti-spoofing (RTX-NMA and OSNMA) protect against fraudulent signals.
Trimble IonoGuard Technology mitigates high ionospheric activity, maximizing operational uptime.
- Onboard high-accuracy MEMS inertial sensors handle up to ±8 g acceleration and ±300 deg/sec angular rate.
- Provides full position and attitude solutions at high update rates (up to 100Hz).
- Maintains continuous high-accuracy position output during GNSS outages.
- Dual-antenna setup provides rapid heading alignment even when stationary.
- Next-generation architecture featuring best-in-class GNSS ASICs.
- Trimble JammerGuard actively monitors and minimizes unwanted RF interference across all bands.
- Built-in spoofing protection leverages Trimble RTX-NMA and Galileo OSNMA for real-time authentication.
- Trimble IonoGuard mitigates high ionospheric activity for uninterrupted availability.
- Trimble ProPoint engine delivers premium accuracy, availability, and integrity in GNSS challenged conditions.
- Gracefully transitions between SBAS, DGNSS, RTK, or RTX modes for uninterrupted positioning.
- Trimble EVEREST™ Plus delivers reduced multipath errors.
- Supports advanced RF Spectrum monitoring and analysis.
- Compact board module designed for seamless OEM integration.
- Flexible interfacing options including Ethernet, RS232, USB, and CAN connectivity.
- Integrated Ethernet enables rapid data throughput and remote configuration via a standard web GUI.
- Upgraded networking features support for PTP timing alongside NTP
