Receiver Enclosures

Trimble BX1092i

The Trimble BX1092i is a ruggedized quad-band, dual-antenna GNSS-INS receiver designed for uninterrupted centimeter-level positioning. Powered by the ProPoint® engine and the new Maxwell™ 8 technology for uncompromised performance, it brings unprecedented resilience to OEMs. It features Trimble IonoGuard™ to mitigate ionospheric activity, along with JammerGuard™ and RTX-NMA spoofing protection to ensure reliable orientation in challenging environments.

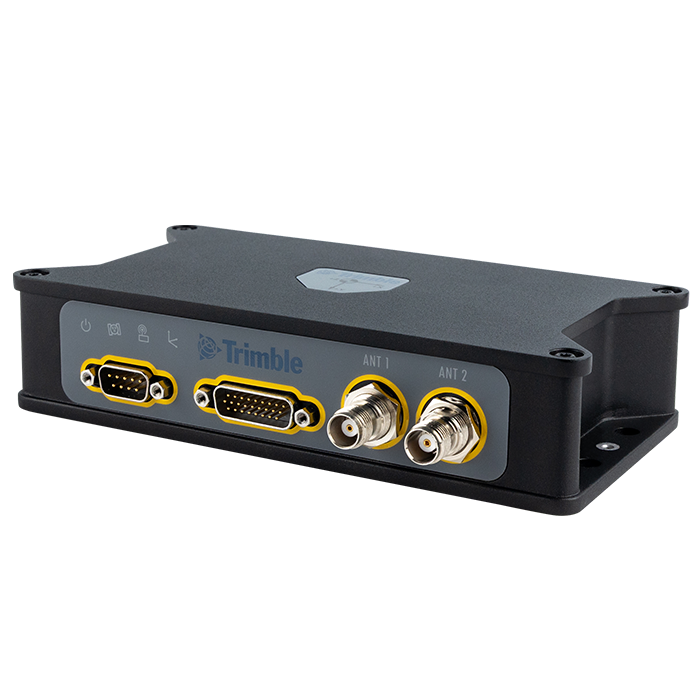

oem-bx1092i-700x700

Product Summary

Trimble BX1092i

The BX1092i is a rugged dual-antenna GNSS-INS receiver enclosure powered by Maxwell 8 technology. It delivers secure, centimeter-level positioning and orientation at high update rates.

Product Line
Receiver Enclosures
Contact sales

Product

Specifications

  • Trimble Maxwell 8 technology with best-in-class GNSS ASICs for superior satellite tracking.

  • Advanced JammerGuard and anti-spoofing (RTX-NMA and OSNMA) capabilities to detect and neutralize fraudulent GNSS signals.

  • Trimble IonoGuard Technology mitigates high ionospheric activity to significantly increase operational uptime.

  • Upgraded high-accuracy MEMS inertial sensors handling up to ±8 g acceleration and ±300 deg/sec angular rate.

  • Rugged IP67 enclosure featuring Ethernet, USB, CAN, and RS-232 interfacing with higher baud rates up to 921,600

Product

Resources

GNSS and inertial
collapse icon

  • Integrated high-accuracy MEMS inertial sensors handle up to ±8 g acceleration and ±300 deg/sec angular rate.
  • Delivers full position and orientation at high update rates (up to 100Hz).
  • Dual-antenna setup provides rapid heading alignment.
  • Maintains continuous positioning in GNSS-challenged environments.
Trimble Maxwell 8 Technology
collapse icon

  • Next-generation architecture featuring best-in-class GNSS ASICs.
  • Trimble JammerGuard actively monitors and minimizes unwanted RF interference.
  • Built-in spoofing protection leverages Trimble RTX-NMA and Galileo OSNMA for real-time authentication.
  • Trimble IonoGuard mitigates high ionospheric activity for uninterrupted availability.
Robust centimeter accurate solutions
collapse icon

  • Trimble ProPoint engine delivers premium accuracy, availability, and integrity.
  • Gracefully transitions between SBAS, DGNSS, RTK, or RTX modes for uninterrupted positioning.
  • Trimble EVEREST™ Plus technology reduces multipath errors.
  • Supports an advanced RF Spectrum toolkit for real-time monitoring.
Easy to integrate
collapse icon

  • Designed for ruggedized industrial applications in an IP67 enclosure.
  • Features integrated Ethernet for rapid data throughput and web GUI access.
  • Upgraded RS-232 ports now support baud rates up to 921,600.
  • Supports PTP timing, CAN, USB, and offers both ROS 1 and ROS 2 drivers

Explore

Want to learn more about Maxwell 8 products?

Receiver series information
