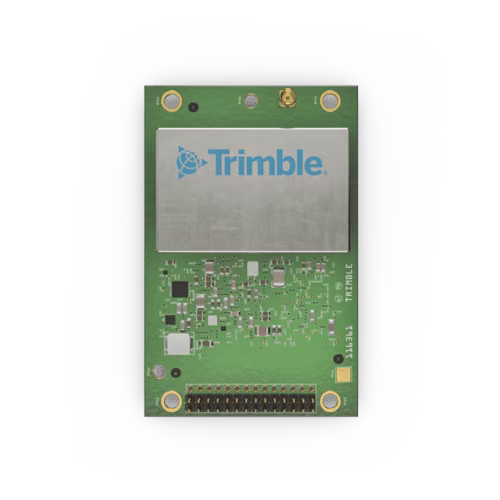

Trimble BD9250
The BD9250 is a dual-frequency L1, L2 or L5 field-switchable GNSS receiver with integrated MSS-Band to support Trimble RTX service.
Product Summary
Trimble BD9250
The BD9250 is a dual-frequency L1/L2 or L5 field-switchable GNSS receiver with integrated MSS-Band to support Trimble RTX service.
Product Line
Receiver modules
Product
Specifications
The Trimble BD9250 delivers robust centimeter-level positioning and advanced functionality with flexible signal tracking and an MSS-Band to support Trimble RTX Services.
Dual-frequency L2/L5 field switchable GNSS receiver allows customization to select frequencies best suited for their application.
Trimble Maxwell 7 technology
- 336 tracking channels for multi-constellation GNSS support, Everest Plus™ multipath mitigation, and proven low-elevation tracking technology.
- Maxwell™ 7 technology utilizes up to three signals (triple frequency) from each satellite for more accurate positioning and less project downtime.
- Spoofing protection and interference detection with onboard RF spectrum analysis
Enhanced positioning with Trimble ProPoint
- Improved RTX performance under harsh conditions such as canopy, highway overpasses and in dense urban areas
- Sensor fusion using tighter integration of GNSS and IMU (and new technologies in the future)
- Ability to utilize multi-constellation signals from GPS, Galileo, GLONASS, BeiDou and QZSS reduces convergence times
Flexible interfacing, easy integration
- On-board ethernet connectivity allows high-speed data transfer and configuration via standard web browsers. USB, CAN and RS-232 are also supported
- Like other Trimble embedded technologies, easy to use software commands simplify integration and reduce development time
